Dismantling and repairing a Ford radio 4000 RDS or the smashed rotary button
Question: What can you do if, in an accident, someone smashed the volume “button” of a Ford radio, and the volume doesn’t work anymore?
Answer:
- Release the radio (without a professional tool for that, the two
metal things in the picture were made out of a flower holding
facility, the diameter is 2 mm or
2.5 mm
with the white lacquer, that still fits) - Remove the front panel with a
Torx-8
screwdriver - Look concerned because the PCB is completely wracked where the rotary encoder was

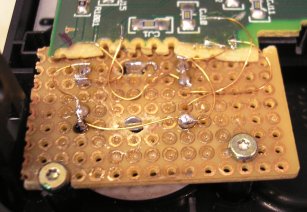

- Take a fitting piece of prototype PCB, drill and solder in the rotary encoder
- Swear because there is no room to put the prototype PCB behind the PCB of the front panel (the rotary encoder and so the prototype PCB will receive all the force from pressing it, so it needs to be mounted solidly)
- Dismantle the PCB with a
Torx-6
screwdriver, put the prototype PCB behind it, mount it again - Wire up everything and have fun with a working volume control
